Slitting Machine

Slitting Machine

5000-7000 USD ($)/Set

Product Details:

X

Slitting Machine Price And Quantity

  • 5000-7000 USD ($)/Set
  • 0.15 - 7000.00 USD ($)/Set
  • 1 Set

Slitting Machine Trade Information

  • Qingdao/Shanghai
  • 1000 Set Per Month
  • 30 Days
  • Pallet or wooden case.
  • All India

Product Description

We are emerging as topmost manufacturer and exporter of Slitting Machine for our valuable customers.  Offered machine is used for slitting various hard materials such as metal, plastic, steel, and iron. Provided machine finds its applications in the metalworking and fabrication industries. Offered machine is made using high-quality components under the supervision of our deft professionals with cutting edge techniques. Provided machine is well admired among clients due to its fast processing speed and longer service life. In addition to this, offered Slitting Machine is tested at our ends to ensure its durability.

Slitting machine

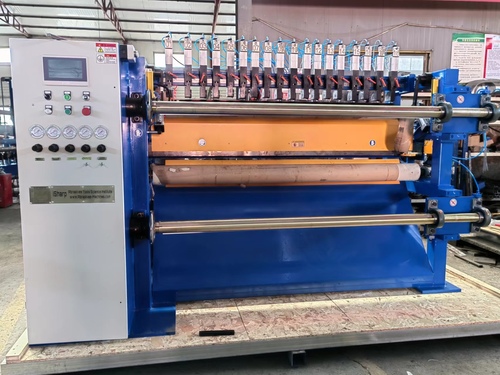

Abrasive Jumbo Roll Slitting Machine: The jumbo roll slitting machine is designed to cut and rewind rolls of abrasive paper and cloth.

Slitting machine Technical data:

  • Slitting width:100-1650mm
  • Slitting variable speed:2-10 m/min
  • Pneumatic expanding shaft on the unwinder and the rewinder
  • Maximum unwinder diameter:700mm
  • Maximum rewinder diameter:600mm
  • Automatic deviation correction with unwinder
  • Electromagnetic variable force control: 25 N.m
  • knife variable setting presure: 6-60 Kgf
  • Slitting accuracy:0.5 mm
  • Installed power:  3 KW
  • Pneumatic Pressure: 0.7 Mpa
  • Overall machine dimensions:2.6x1.55x1.6m(LxWxH)
  • Approx. weight: 1800kg
  • Delivery time: 30-60 days after received deposit.

Abrasive Narrow Roll Slitting Machine: The narrow roll sliiting machine is mainly for slitting abrasive cloth rolls to narrow rolls.

Technical data:

  • Slitting width: 6-500mm
  • Slitting variable speed: 2-10 m/min
  • Pneumatic expanding shaft on unwinder and rewinder
  • Automatic deviation correction with unwinder
  • Electromagnetic variable force control: 25 N.m
  • Knife variable setting pressure: 200-800 Kgf
  • Slitting accuracy: 0.5 mm
  • Installed power: 1.5 KW
  • Pneumatic Pressure: 0.7 Mpa
  • Overall machine dimensions: 1.5x1.05x1m(LxWxH)
  • Approx. weight: 1100kg
